Optical Comparators

Now available with pc readouts. Get your readings directly on a computer storage.

Learn more about optical comparators

16H optical comparator with M2 pc readout

Metric Dial Indicator

Dial indicators available in metric resolutions too.

Dial indicators page

Metric dial indicator

Dial Indicator - 20 Milionths that you can actually read!

Dorsey Metrology 4I4-002 dial indicator is probably the most precise indicator on the planet.

Read more about dial indicators

Dial Indicators

Bore Gages

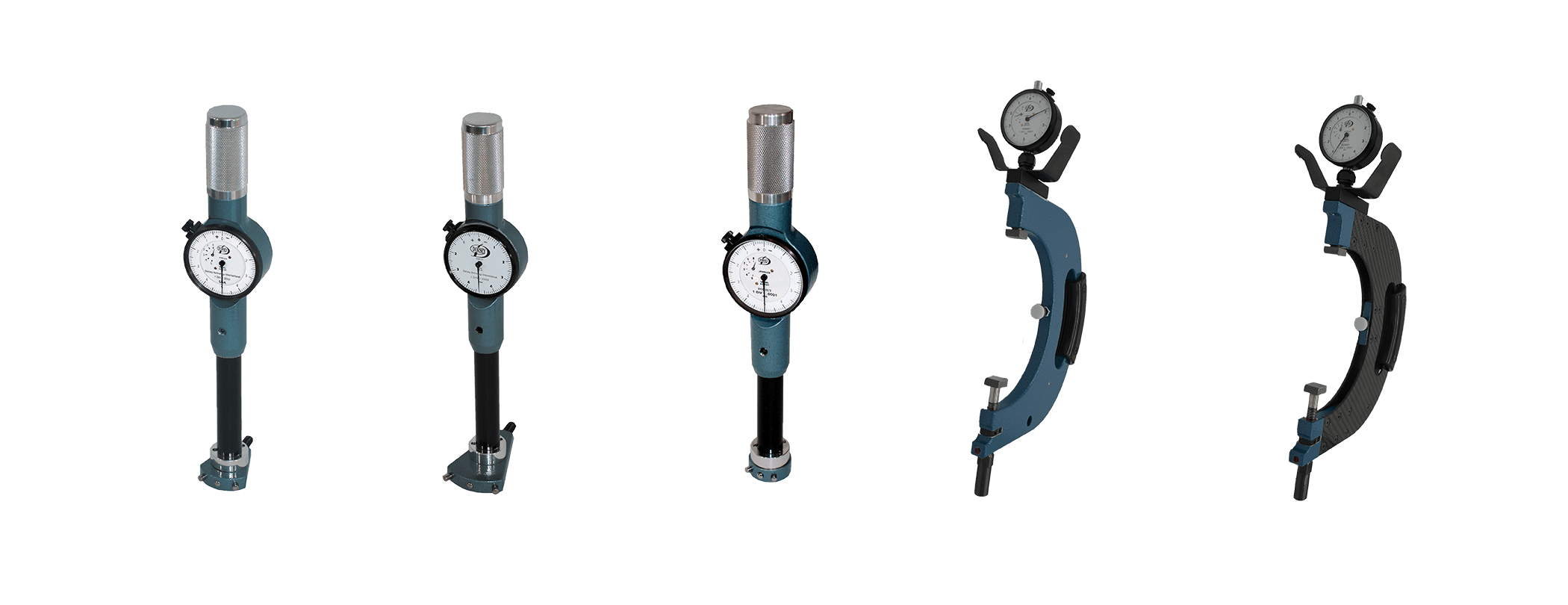

We manufacture variety of gages, from simple ID/OD to custom designs. Our product lines include English and Metric gages.

Bore Gages product page

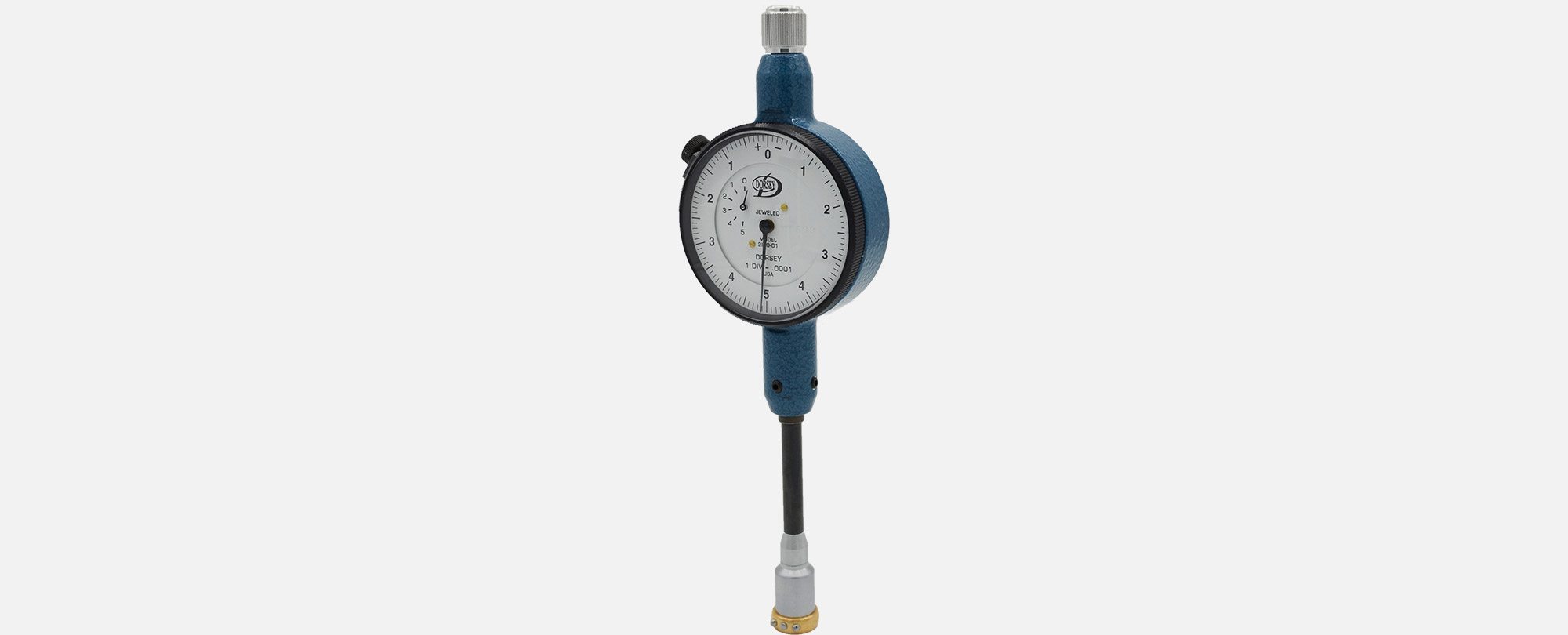

Bore Gages

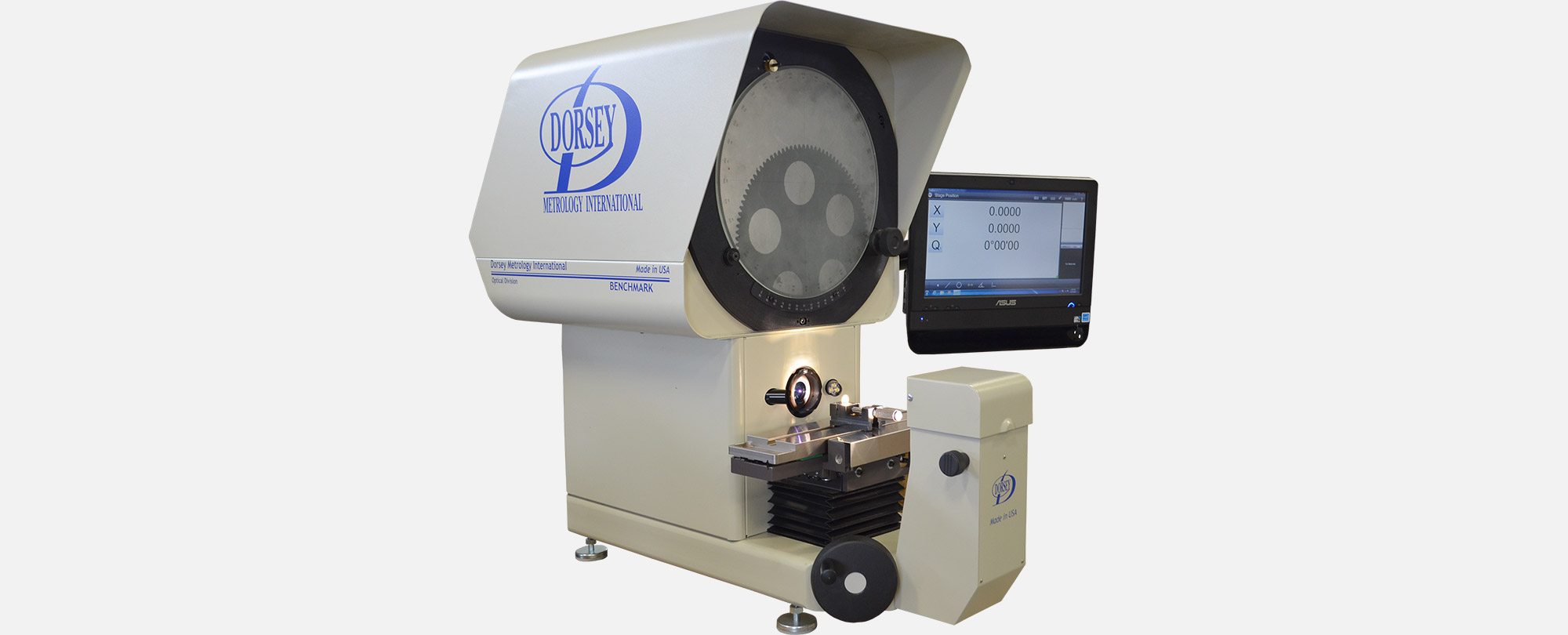

14H Optical Comparator

Our latest optical comparator model with 14" screen.

14H Optical Comparator product page

14HE Optical Comparator
1
2
3
4
5

Optical Comparators | Dial Indicators | Gages

Dorsey Metrology International will be exhibiting in the MFG4 show taking place at the Hartford Convention Center May 6th through the 8th, 2014.  We will be featuring our new "Carbon Fiber Technology" products, as well as our entire line of Dimensional Measurement Products that are solutions for measuring on the Shop Floor. Come see our comparators as well. These robust built machines are designed to last and with our Harsh Environment Package that is designed to protect the optical chamber, permits worry free use on the shop floor. By using a positive airflow, along with a sealed the optical chamber, prevents outside contaminates from entering the chamber, thus keeping the comparator’s image bright and the systems mirrors, inner optics, electronics and other internal components cleaner. To register for the show, click on the following link: http://www.mfg4event.com/2014/public/enter.aspx

For over 50 years Dorsey Metrology International has been manufacturing and selling precision measuring equipment such as dial indicators, bore gages, large diameter gages and snap gages, just to name a few. Our ultra high amplification dial indicators offer unmatched accuracy and repeatability.

Since 1986 we also have been perfecting our high quality optical comparator line. To view more information on our wide variety of products please visit the individual product pages.

Optical Comparators

16H Optical Comparator with digital readout
Optical Comparator, model 16H

Optical comparator is a non contact inspection instrument that applies the principle of optics to magnify and project the image of an inspected part. Optical inspection instruments allow the inspection of a part while the part is actually moving and being machined on the machine tool. Light source emits light beam that travels through prism and projects the shadow of an object onto a screen a few feet away so it can be compared with a chart showing tolerance levels for the part.

Optical comparators screen sizes

screen

Various optical comparators screen sizes are available to Dorsey's customers, from 14" to 80". When selecting optical comparator screen size, it is important to determine how much of the part must be viewed at one time.

Optical comparator readouts

We also offer wide variety of digital readouts for our optical comparators. From simple XY axis to more complex readouts with geometric capability to allow measurement of circles, angles and distances. Our optical comparators are capable of working with CNC readouts, to allow repetitive measurement of parts.

Visit links below for more information about optical comparators readouts. Readouts also available as a PC Tablet. Contact us for more information.

Optical comparator readouts

Optical comparator charts

Our optical comparator charts are available in various styles. We use satin ground glass for our charts for superior quality. We also offer overlay charts to place over existing glass screen. Overlay charts are available in clear and frosted mylar and vinyl. Visit our optical comparator charts page below for more information.

Optical comparator charts

Optical comparator stages

We manufacture a complete line of precision coordinate XY staging in manual or motorized versions for OEM and upgrade applications. Visit the page below to find out more about our line of projector stages.

Optical comparator stages

Optical comparator fixtures

We offer various accessories for our optical comparators. From monochromatic filters, to increase contrast and reduce optical aberration and operator eye strain, to calibration tools, blocks and fixtures to prevent movement of inspected part on optical comparator stage.

Optical comparator fixtures

Dorsey's optical comparators product page

Indicating Devices, Dial Indicators, Bore, Snap, Large Diameter Gages and other measuring devices see Product link on top of the page. If your application require custom design, whether it's dial indicator, gage or comparator, we are able to design new tools to fit your needs.
